SISTEMI | WATER POINT EX®

Category:
Drinking water treatment plant.

Description:
The WaterPoint ® EX Compact Drinking Water Treatment Plants are designed to supply high quality and safe drinking water from different water sources. WaterPoint ® EX is able to treat water with a variable and broad range of suspended solids and very high turbidity, in order to produce safe and quality drinking water having an effluent quality assurance that meets international and local drinking water standards.

Raw water:

Surface water: lakes, rivers.
Ground water: shallow wells.
Turbidity: Any

Flow rates:

20 – 20,000 m3/day

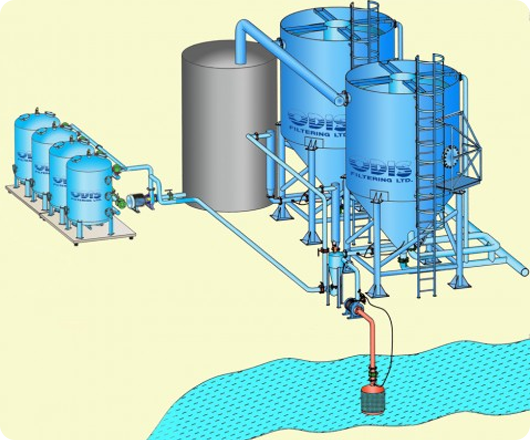

Technical specification and main components:

Primary Separation – ODIS strainer & Hydro Cyclone
Coagulation
Sedimentation – ODIS DECA
Multimedia Depth Filtration – ODIS multimedia filters
Disinfection
System is fully automatic

Treated water guaranteed:

Turbidity - less than 1 NTU, quality drinking water having an effluent quality assurance that meets international and local drinking water standards.

Advantages:

Economical - Each system is designed specifically under consideration of customer needs and budget.

Modular – system size and flow can be increased at any time simply by adding more elements (container, skid or filters) in a simple way.

Automatic – Each system is fully automatic and all operating modes controlled by Programmable Logic Controller (PLC).

Easy to operate – Water Point EX is robust, reliable, user friendly system designed to be operated in remote areas where skilled operators, technicians, and spare parts are not readily available.

Plug n' Play – Each system is assembled and tested in the factory prior to shipment. WaterPoint EX models C, S & T are ready to operate as they leave the factory and no further on-site assembly is needed.

Applications:

Small and medium size communities and municipalities.
Small and medium military bases.
Emergency relief organizations.
Remote and rural areas.

Optional items:

Independent power source (generator, solar), remote control, alarms by SMS, water quality on-line controllers (PH, Chlorine, Turbidity, etc.), on-site mobile laboratory, water tanks, on-site chlorine generator, chemicals (disinfectants, coagulants etc.).
