SISTEMI | LITEPURE EX®

Category:
Compact and mobile drinking water treatment plant from any type of water.

Description:
LitePure EX®- is a compact and mobile water treatment plant which is designed to treat any type of water into drinking water. The LitePure EX® eliminates all solids, impurities, chemicals, bacteria and viruses from raw water. The LitePure EX® combines several filtration and water purification processes into one integral unit that is designed specifically to supply drinking water at any site and under any conditions.

Raw water:

ANY

Flow rates:

20 – 600 m3/day

Technical specification and main components:

Primary Separation – ODIS strainer & Hydro Cyclone
Coagulation
Sedimentation
Multimedia Depth Filtration – ODIS multimedia filters.
Activated carbon filtration - ODIS multimedia filters.
Pre RO treatment – micro-filtration and antiscalant.
RO unit.
Disinfection unit.
CIP unit – Clean-In-Place.
Optional mineral recovery unit.

Treated water guaranteed:

Drinking water quality.

Advantages:

Safe drinking water – LitePure EX® ensure safe drinking water from any water source under any condition.LitePure EX®is designed to remove over 98% of dissolved inorganic matter, over 95% of total dissolved organics and all colloidal and suspended matter larger than 0.05 micron.

Modular – system size and flow can be increased at any time simply by adding more elements (container, skid or filters).

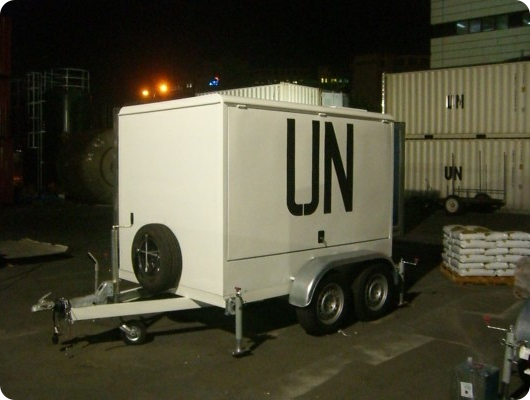

Mobile – LitePure EX® is designed to be easily relocated.

Maintenance – CIP process increase membranes lifetime.

Automatic – Each system is fully automatic and all operating modes controlled by Programmable Logic Controller (PLC).

Plug n' Play – Each system is assembled and tested in the factory prior to shipment. LitePure® models C, S & T are ready to operate as they leave the factory and no further on-site assembly are needed.

Applications:

Military usage – small bases, temporary stations, advancing forces.
Emergency relief organizations.
Disaster areas.
Remote and rural areas.
Municipalities which wish to prepare for future natural disasters.

Optional items:

Collapsible Water storage tanks, concentrate disposal unit, Independent power source (generator, solar), remote control, water quality on-line controllers (PH, Chlorine, Turbidity, etc.), on-site mobile laboratory, water tanks, on-site chlorine generator, chemicals (disinfectants, coagulants etc.).
