SISTEMI | LITEPURE B®

Category:
Drinking water bottles manufactory plant.

Description:
LitePure®- Plant designed to treat any type of water from different sources: seawater, brackish, ground, surface water etc. The LitePure B® eliminates all solids, impurities, chemicals, bacteria and viruses from raw water, prepare the water for long storage, and fill them into water bottles. The LitePure B® also manufactures the bottles on-site for a complete drinking water bottles assembly line.

Raw water:

Sea Water
Brackish Water
Ground water
Surface water
Water quality – any.

Flow rates:

Up to 1000 bottles per hour.

Technical specification and main components:

Multimedia Depth Filtration – ODIS multimedia filters.
Activated carbon filtration - ODIS multimedia filters.
Pre RO treatment – micro-filtration and antiscalant.
RO unit.
Disinfection unit (include UV).
CIP unit – Clean-In-Place.
Mineral recovery unit.
Blow molding machine.

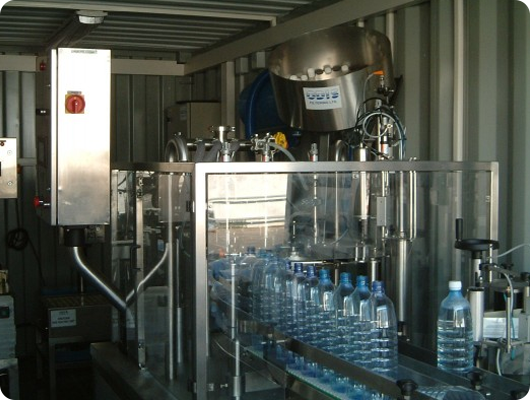

Bottles filling & capping machine.

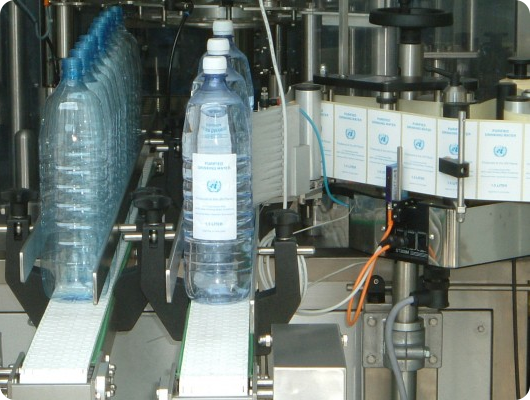

Labeling machine
Packing machine.

Advantages:

Economical - Each system is designed specifically under consideration of customer needs and budget.

Bottles Labeling – Each owner of LitePure B® can design his desired bottle shape, size and label.

Fast ROI - averagely, LitePure B® ROI is less than 2 years of operating.

Maintenance – CIP process increase membranes lifetime.

High quality drinking water – LitePure B® is designed to remove over 98% of dissolved inorganic matter, over 95% of total dissolved organics and all colloidal and suspended matter larger than 0.05 micron.

Robust – System is designed to work under hard conditions (weather & area), to ensure continuous manufactory of bottles, and long lifetime.

Plug n' Play – Each system is assembled and tested in the factory prior to shipment.

Applications:

Remote and rural areas.
Emergency relief organizations.
Hotels and resorts.
Small and medium military bases.
Small communities.

Optional items:

Concentrate disposal unit, Independent power source (generator, solar), remote control, alarms by SMS, water quality on-line controllers (PH, Chlorine, Turbidity, etc.), on-site laboratory, on-site chlorine generator, chemicals (disinfectants, coagulants etc.).
